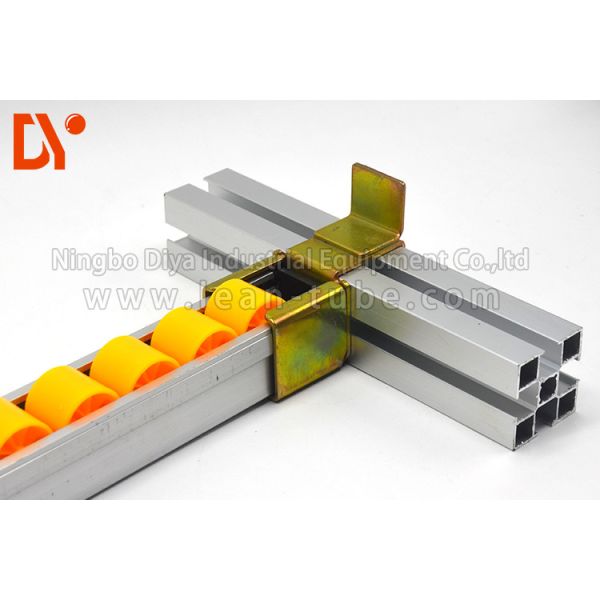

Connectors of roller track for PU material in roller track table or assemble line
Direction for use Our steel roller track is easy to install, and it can be assembled into the shelf or workbench we want only by screwdriver, screw and nut, and can be cut into the length we want. Description of application effect Our steel roller track are suitable for various production lines, shelves, benches, etc. Their quality is durable and reliable, and they are well liked and praised by customers in many countries, and have been sold well in many countries for many years.
- Sheet metal strips, aluminum alloy strips and accessories
- Aluminum alloy profiles and components
- Peripheral products of wire bar rack
- Engineering nylon and plastic products
- Roller and Fulai strip in turn
The Colli Roller Track combines a number of advantages. It is the only solution for many logistics applications. Ball bearing-mounted rollers, with a load-bearing capacity of up to 40 kg, are fitted in a sturdy U-profile. Colli Roller Tracks can be used in the temperature range from -30 °C to +100 °C
The following models are available:
- Ball bearing-mounted plastic rollers (D = 54 mm), with and without flange
- Max. profile length 6033 mm
You can transport pallets parallel or at right angles to the direction of their skids.
Pallet Roller Tracks are one of the most economical solutions in pallet transport. Their main use is in flow storage systems. However, stand-alone models are also possible as displacement or gravity solutions.
Pallet Roller Racks are robust pieces of equipment. The steel rollers have a load-bearing capacity of 150 kg. The ball bearings are maintenance-free and have a long service life.
The following models are available:
- 3 standard plastic or steel rollers, untreated or galvanised steel rollers with and without flange
- Max. profile length of 6006 mm, 3 profile models (low, high and low with one-sided lateral guide)
- Roller guard, end stops, feed-in aids, manual pallet separators
MULTIDIRECTIONAL ROLLERS
to move all flat-based goods in all directions
Multidirectional Rollers are used wherever you need to rotate, sort, divert, feed or pick flat-based containers, load carriers, packages, boxes or workpieces.
Create any size of bed surface with Multidirectional Rollers. The goods being transported should not exceed the following weights:
D=50mm 100 kg
D=60mm 200 kg
D=80mm 400 kg
(Load-bearing capacity/m with the narrowest spacing!!)
The rollers are made of polyamide and can be used in the temperature range between -30 °C and +90 °C.
The following models are available:
- 50, 60 und 80 mm in diameter
- Soft model D = 60 mm made of soft plastic (PUR)
- Max. profile length 6033 mm
Our Services
1. We have professional engineer to do after-sale service if needed.
2. Local service will be done by our local agent if needed.
3. OEM is welcomed or design as customer request.
